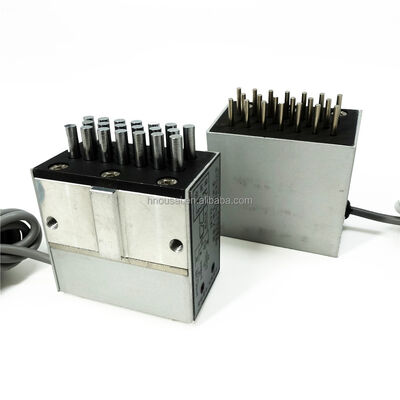

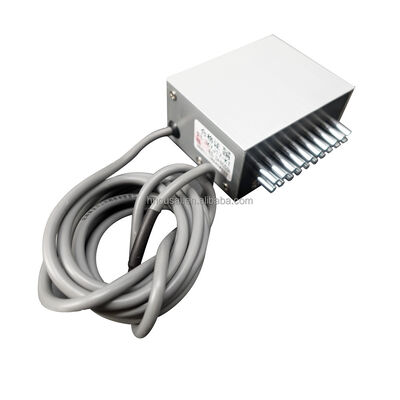

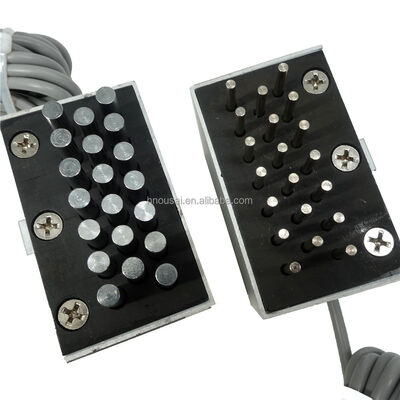

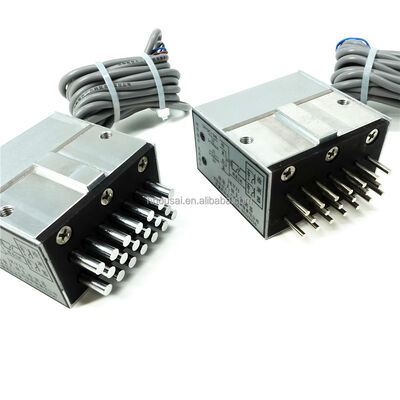

HLP Packer Machine Loose Empty Filter Rod Defective Detector Cigarette Testing Device

बड़ी छवि : HLP Packer Machine Loose Empty Filter Rod Defective Detector Cigarette Testing Device

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
मूल्य:	$1,300-1,350

संपर्क करें

विस्तृत उत्पाद विवरण

उत्पादन क्षमता:	10000 पीसी/माह	प्रेरित प्रकार:	बिजली
स्वचालित ग्रेड:	अर्द्ध स्वचालित	वोल्टेज:	220 वी
वजन (किग्रा):	8	गारंटी:	1 वर्ष
प्रमुख विक्रय बिंदु:	स्वचालित	प्रोडक्ट का नाम:	अंतिम खाली फ़िल्टर डिटेक्टर को ढीला करें
आकार:	राजा/रानी/सुपरस्लिम आकार	प्रयोग:	ससिब 3000/ ससिब 6000/एचएलपी2
मुख्य वोल्टेज:	24VDC	विशेषता:	लंबा कार्यात्मक जीवन
पैकेट:	कार्टन / लकड़ी	प्रमाणपत्र:	सीई / आईएसओ
प्रमुखता देना:	HLP Packer Machine filter rod detector , cigarette testing device for loose rods , empty filter rod detector with warranty

Product Overview

A cigarette testing device for cigarette packaging machines located at a point in the manufacturing process just before the cigarettes are placed into cigarette packages, for simultaneously testing the ends of cigarettes disposed in a group. Magnetic Sensitive Loose-end Missing Filter Defective Cigarette Detector is a cigarettes location detection system, built-in 20 displacement magnetoelectric converters, used for dectecting the loose-end and missing filter rod, if the cigarette was detected loose-end or missing filter, the sensor will output signal, for rejecting the cigarettes into the pack. This system includes a probe in the form of a split fiber optics bundle located adjacent a conveyor or other transport means for cigarettes which travel along the conveyor with their axes substantially normal to the direction of travel of the conveyor. The fibers of the bundle are divided randomly and one branch extends to a light source and the other to a detector. In this fashion, light will be directed from the probe towards the tobacco end of the traveling cigarettes. The reflected light is transmitted through the other branch to the detector which is coupled with a bridge circuit for measuring the level of intensity of the reflected light. When a loose cigarette end is detected, either a memory circuit or wheel is actuated in order that the cigarette having the detected loose end will be eventually rejected by an ejection mechanism.

Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and supply of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry. We understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements.

Our comprehensive range of products includes spare parts for cigarette making, packing machine and filter making machine. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry.
