MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables

बड़ी छवि : MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	Osay

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
मूल्य:	US$140,000

संपर्क करें

विस्तृत उत्पाद विवरण

आयाम:	188111162160	शक्ति:	9.15 डब्ल्यू
वोल्टेज:	380V±38V	वज़न:	4000kg
पर्यावरणीय तापमान:	10-40 ℃	सापेक्षिक आर्द्रता:	≤80%
ऊंचाई:	≤2000m	नियंत्रण विधा:	सर्वो ड्राइव+पीएलसी+टच स्क्रीन
उपमार्ग की चौड़ाई:	0.5-1.5 मिमी	सामग्री स्टैकिंग क्षमता:	120 किग्रा/मीटर
रेटेड क्षमता:	3000 किग्रा / घंटा	चाकू की ऊँचाई:	75 मिमी
चाकू की चौड़ाई:	400 मिमी	ब्लेड की संख्या:	8
कटरहेड गति:	50-300rpm	ब्लेड जीवनकाल:	98hr
प्रमुखता देना:	380V rotary cutting machine , PLC control tea cutter , vegetable cutting machine for tea

MC84R Rotary Cutting Machine for Vegetables Tea with Auto Sharpening System PLC Control

Product Attributes

Attribute	Value
Application	Vegetables, tea or similar materials
Warranty	1 Year
Dimension (lwh)	188111162160
Power (w)	9.15
Voltage	380V±38V
Weight (kg)	4000
Video outgoing-inspection	Provided
Machinery test report	Provided
Core components	PLC
Environmental temperature	10-40 ℃
Relative humidity	not exceeding 80%
Altitude	not exceeding 2000m
Incoming materials	tea/vegetables/herbs
Control mode	servo drive+PLC+touch screen

Product Description

The MC84R rotary cutting machine is a specialized machine developed independently by our company for cutting vegetables, tea leaves, or similar materials. The MC84R rotary cutting machine consists of a body, feeding belt, compacting belt, cutter head, automatic sharpening device, automatic feeding device, and control system.

This machine adopts our company's innovative proprietary technology and automatic control systems such as servo drive, PLC, and touch screen, which can set and operate multiple parameters to meet different production needs.

Key Features

High-Precision Cutting - Sharp rotary blades deliver uniform cuts for tea, herbs, vegetables, and dry materials.
Fully Automated Operation - Equipped with servo drive, PLC, and touchscreen control for easy parameter adjustment.
Auto Blade Maintenance - Integrated sharpening and feeding system extends blade life and reduces downtime.
Multi-Parameter Settings - Adjust cutting thickness, speed, and pressure for different materials.

Technical Specifications

Project	Unit	Parameter
Cutting width	mm	0.5-1.5
Material reference stacking capacity	kg/m³	120
Rated capacity (with a cutting width of 1mm)	kg/h	3000
Knife door height	mm	75
Knife door width	mm	400
Number of blades	Piece	8
Cutterhead speed	rpm	50-300
Blade lifespan	Hr	98

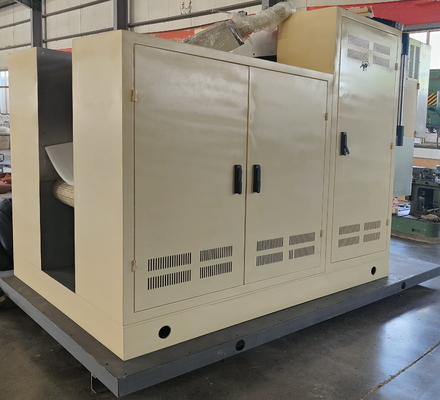

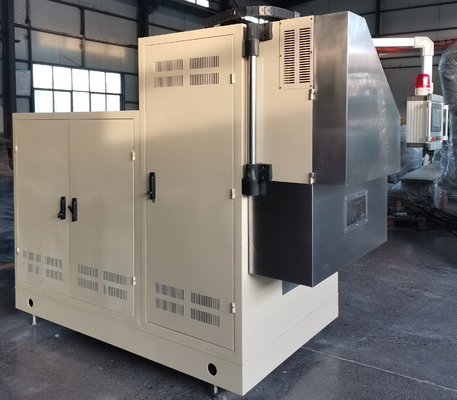

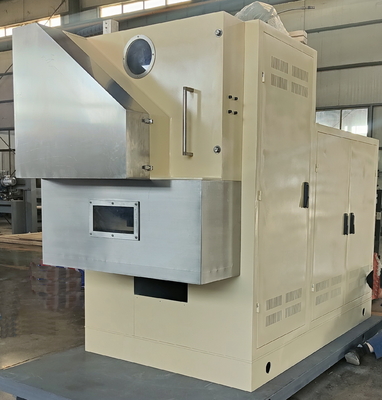

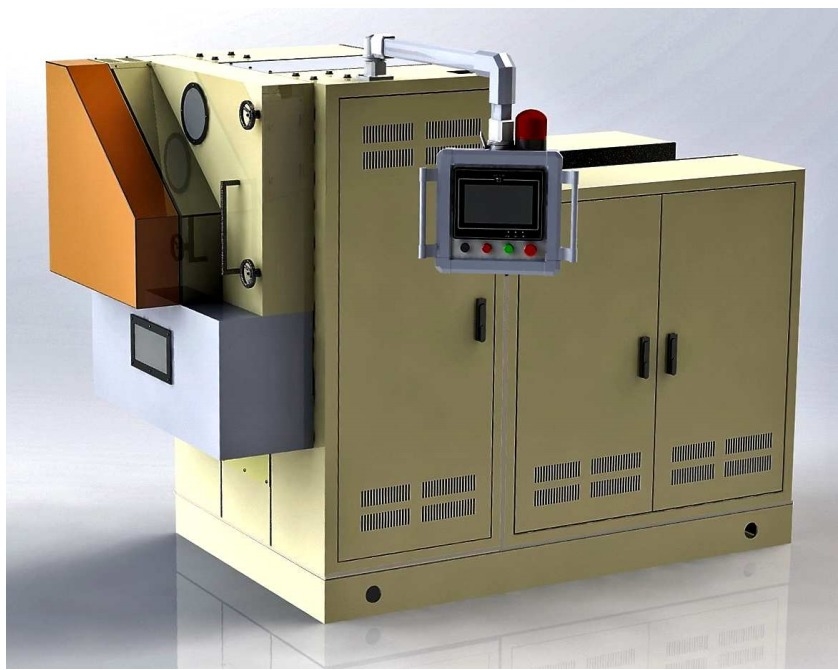

Product Images

Company Profile

Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and supply of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry.

We understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements.

Our comprehensive range of products includes spare parts for cigarette making, packing machine and filter making machine. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry.
